Rear-Loading Private Use Horizontal Mailboxes – 54 Doors

Product #: 1700-96
PEDESTALS SOLD SEPARATELY
While Supplies Last [All Sales Are Final]
Free Ship March 30% Off All Products

Rear-Loading Private Use Horizontal Mailboxes – 54 Doors

Product #: 1700-96

$3,065.00
Free Shipping for all orders in March!
Discounted Pricing for 5+ units!

Before You Buy:

  • For Private Mail Delivery only
    Cannot be used for USPS Mail Delivery
  • Used for internal non-USPS mail delivery, by colleges, hospitals, dorms, large businesses, etc.
  • Rear-loading
    Delivery person distributes the mail from the rear
  • Can be used for Indoor Use only
    Not warranted for outdoor use
  • Recess mounted only
    17” of wall depth is required
  • Cannot be surface mounted on a wall, pedestal mounted or free-standing
Dimensions
Height

49.63"

Width

25.94"

Depth

16.50"

Weight

125lbs

Rear-loading Private Use Horizontal Mailboxes – 54 Doors

  • 9-high x 6-wide configuration
  • The module contains a total of 54 usable mailboxes (5” high x 4” wide x 15 ½” deep)
  • Standard units come with no rear cover and are open-backed. Locking hinged rear door equipped with a commercial master lock is available for an upcharge – Call for pricing
  • View or download a shop drawing of this product – Please call for a shop drawing of multiple-unit side-by-side configurations

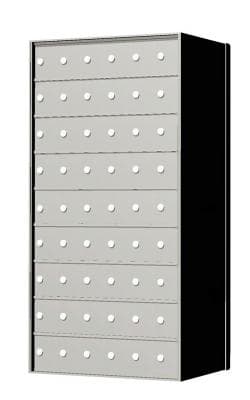

54 Unit Indoor Horizontal Mailbox

The 1700 Series 54-door Horizontal Mailboxes are the perfect solution for large multi-tenant buildings looking to save space, improve security, and make private mail delivery and distribution easy. US Mail Supply is dedicated to giving its customers the highest quality private mailboxes sold at the lowest costs while always providing superior and knowledgeable customer service.

Need help? Looking for a custom configuration? Contact us today or use our online mailbox design assistant.

This 54-door indoor mailbox unit is rear-loading, so it’s easily accessed by mail personnel from the back end. The module is built with 54 secure compartments, configured 9 high by 6 wide, and allows tenants to access their mail in a safe and efficient way. With dimensions of 5” high x 4” wide x 15 ½” deep, these units come in a Clear Anodized Aluminum finish.

Standard configuration details & dimensions

Mailbox configuration 9x6
Number of mailboxes 54
Actual Unit Size
Height 49.63"
Width 25.94"
Depth 16.50"
Mailbox Size
Height 5.00"
Width 4.00"
Depth 15.50"

Before You Buy

  • For Private Mail Delivery only – Cannot be used for USPS Mail Delivery
  • Used for internal non-USPS mail delivery, by colleges, hospitals, dorms, large businesses, etc.
  • Rear-loading – Delivery person distributes the mail from the rear
  • Can be used for Indoor Use only – Not warranted for outdoor use
  • Recess mounted only – 17” of wall depth is required
  • Cannot be surface mounted on a wall, pedestal mounted or free-standing



Make sure to choose the right mailbox

Don't worry, we can help you figure out what's best and most cost efficient for your space. A representative at U.S. Mail Supply will help you figure out what is required for USPS or private delivery, the number of units you need and any information required for installation.
